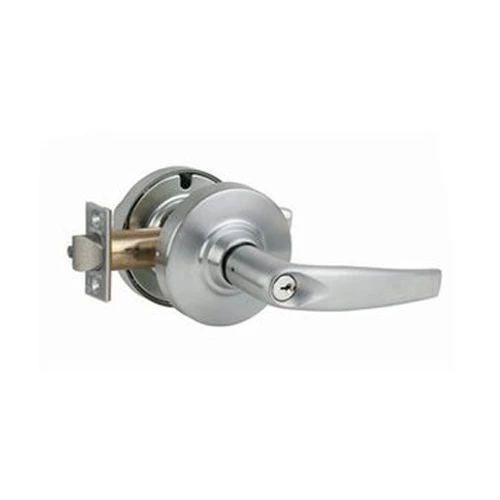

Schlage Lock ND80PD ATH 626 ND Series Storeroom C Keyway Athens With 13-247 Latch 10-025 Strike Satin Chrome Finish

Storeroom Lock, Keyed function, 6-Pin Cylinder, C Keyway, 2-3/4″ Backset Square Corner Deadlatch, 4-7/8″ ANSI Strike. 626 Satin Chrome
ND SeriesCylindrical Locks

ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.

All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.

Product Specifications: Material:

• Modular design of zinc and steel components plated for corrosion protection

Door thickness:

• Standard: 1 5/8″ to 2 1/8″

Handing:

• Non-Handed

Levers:

• Standard: Nine designs, pressure cast zinc, plated to match product finish specification

Roses:

• Wrought brass, bronze, or zinc, plated to match product finish specification

Finishes:

• 10 available
• (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)

Backset:

• Standard: 2 3/4″

Faceplate:

• Standard : 1 1/8″ x 2 1/4″

Bolt:

• Standard : 1/2″ throw via Oil Impregnated Stainless Steel

Strike:

• Standard: ANSI Curved Lip: 1 1/4″ x 4 7/8″ x 1 3/16″

Keying – Formats:

• Standard: 3 Schlage
• (KIL or FSIC or SFIC)

Keying – Access Security:

• Standard: 6-Pin Patented Everest 29

Warranty:

• 10 years mechanical, 1 year wired electrified

Certifications: ANSI/BHMA:

• All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices

ICC:

• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL:

• All locks 3 hour A label single firedoor 4’0″ x 10’0″
• pair doors 3 hour firedoor 8’0″ x 8’0″ with 3/4″ latch option
• pair doors 90 minute fire 8’0″ x 10’0″ with 3/4″ latch option

CA Fire Code:

• All levers with a return to door of 1/2″
• (64 mm) or less comply
  (Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)

FL Building Code:

• Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes

Federal:

• Meets FF-H-106C Series 161

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
