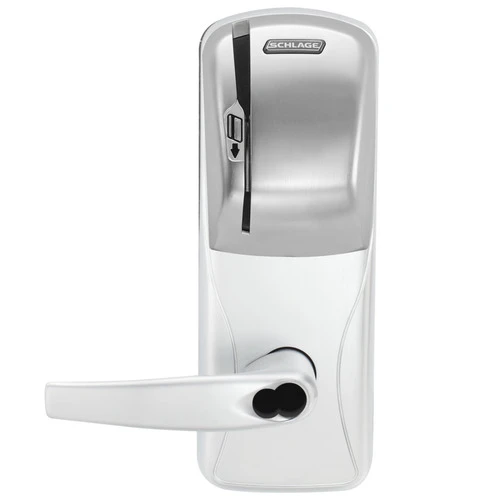

Schlage Electronics CO250MS70MSATH625JRH Electric Mortise Lock Bright Chrome

CO-250 Standalone Electronic Lock, Mortis, Classroom Function, Magnetic Stripe (Swipe), Athens Style Lever, FSIC Prep, Bright Chrome

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-250 is a computer programmable offline lock that stores user rights on the magnetic stripe credential, and captures an audit trail in the lock. The CO-250 provides dynamic rights management, meaning you do not have to visit the door to change user access rights. This makes it a cost effective solution for offline environments with a large number of users. The CO-250 also allows you to retrieve audits by using the Handheld Device (HHD) in conjunction with your access control software.

Simple offline, keypad-entry lock is designed for up to 500 unique users using PIN code entry only.

CO-100 models are designed for use as easy to manage, low maintenance locks that use 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time.

Cylindrical, mortise, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with existing hardware. Mechanical key override is standard and compatible with cylinders from Schlage and other popular brands. The CO-Series is also compatible with many popular brands of exit devices.

Reader options

• Keypad only
• User verification
• Capable of credential verification
• Up to 500 users
• Remote release available on Office function locks

Basic users can:

• Enter assigned PIN code to unlock door momentarily from normally locked state

Managers can:

• Be assigned toggle code priveges to change the lock to an unlocked state and back when desired
• Assign or delete basic user PIN codes

Administrators can:

• Assign or delete basic user PIN codes
• Change programming codes
• Adjust desired relock delay from 1-120 seconds
• Put lock into freeze state that cannot be toggled
• Use a pass-through code to momentarily unlock regardless of current state
• Disable or enable remote features like release or occupancy indication where available

Additional

• Programmable privacy function option provides lighted occupancy indication when in use
• Battery life – up to 2 years with 4 AA batteries
• Exterior Temp: -31° to 151°F (-35° to 66°C)
• Interior Temp: 32° to 120°F (0° to 49°C) (battery)
• Humidity: 0 – 100% non-condensing

Chassis

• Cylindrical
• Mortise
• Exit trim
• Each offered with LED status indicator

Cylinder and keys

• Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
• Classic and restricted keyways, master keying and grand master keying options
• Key-in-lever, FSIC, and SFIC cylinder options
• Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders

Functions

• 70 Classroom/Storeroom
• 50 Office with option for remote (wired) release
• 40 Privacy with programmable occupancy indication option
