Schlage Commercial B580P-619 B580 Door Bolt

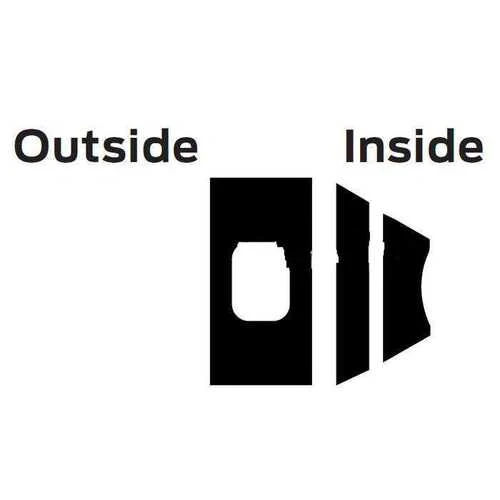

Door Bolt, No Outside Trim, Inside Thumbturn Only, Grade 2, 12-288 Adjustable Deadbolt, 10-094 2-3/4″ Strike Square Corner, 619 Satin Nickel
B500 SeriesGrade 2 Deadlatch

The B500 Series deadbolt is a revolutionary new deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility. Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.

The best deadbolt ever designed by locksmiths

• Adjustable backset with lock-in-place helix design

• Integrated anti-pry shield protects latch

• Thicker metal security strike back-up on jamb side

• Security strike on jamb has third screw for stronger, deeper anchoring

• Added space inside strike box for true deadlatch

• Seamless steel latch construction along the entire length of the bolt housing

• 10% larger diameter deadbolt

• Zinc bolt with spinning hardened steel pin inside

• Tapered front housing that can’t be unscrewed

• Integrated trim piece for fewer pieces out of the box

• Large, easy-to-use, ADA compliant thumbturn

• Meets UL 10B andd UL 10C requirements

Specifications: Handing:

• B Series locksets are non-handed

Door thickness:

• 5-pin: 1 3/8″ to 1 3/4″ (35 mm to 44 mm) standard

Backset:

• Adjustable for 2 3/8″ (60 mm) or 2 3/4″ (70 mm) standard

Front:

• Brass, bronze or stainless steel. 1 1/8″ x 2 1/4″ (29 mm x 57 mm) square corner, beveled

Dead bolt:

• 1″ (25 mm) throw with saw-resistant hardened steel insert

Latch bolt:

• Brass, 9/16″ (14 mm) throw, deadlocking on keyed and exterior functions

Exposed trim:

• Wrought or forged brass or bronze, or pressure cast zinc

Thumbturn:

• Pressure cast zinc, plated to match finish symbols

Strike:

• 1 1/8″ x 2 3/4″, metal dust box reinforcer and three 3″ screws

Cylinder and keys:

• 6-pin solid brass patented Everest 29 S123 keyway standard with two nickel silver keys per lock. Everest SL cylinders available in 7 pin Everest B and Everest 29 R keyway families only. Items specified in C keyway will be furnished 5-pin.

Keying options:

• Interchangeable core and Primus XP high security cylinders
• Master keying, grand master keying and construction keying

Warranty:

• Commercial: Three-year limited

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 619 – Satin nickel
• 622 – Matte black
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 626AM – Anti-microbial coating
• 643e – Aged bronze
• e = an equivalent finish to the BHMA standard.

Certifications: ANSI:

• B500 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements.

UL / cUL:

• UL 10B and UL 10C listing optional for B500 Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing.

UL437 Listed locking cylinder optional:

• Specify Primus 20-500 Series cylinder B500 Series Grade 2 products.

ADA compliant:

• Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
