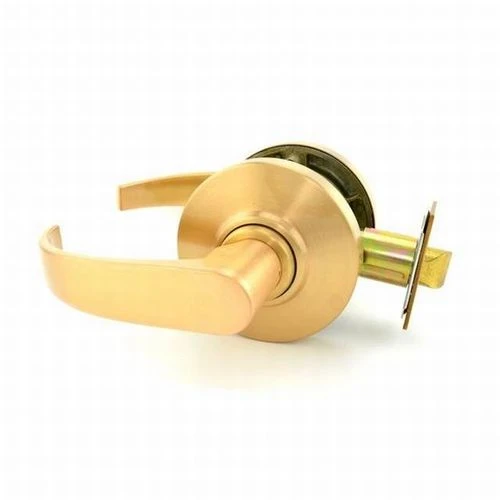

AL SeriesCylindrical locks
The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.
Specifications: Handing:
- Non-handed
Door thickness:
- 1 3/8″ to 1 7/8″ (35 mm to 48 mm) standard
Backset:
- 2 3/4″ (70 mm) standard. 2 3/8″ (60 mm)
Front:
- Steel. 2 1/4″ x 1 1/8″ square corner, beveled, for 2 3/4″ backset standard
Lock chassis:
- Steel, zinc dichromated for corrosion resistance
Latch bolt:
- Brass, chrome plated, 1/2″ throw, deadlocking on keyed and exterior functions
Exposed trim:
- Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
- ANSI curved lip strike 4 7/8″ x 1 1/4″ x 1 1/4″ lip to center standard.
Cylinder and keys:
- 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
- Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
- Three-year limited
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 609 – Antique brass
- 612 – Satin bronze
- 613 – Oil rubbed bronze
- 619 – Satin nickel
- 622 – Matte black
- 625 – Bright chromium plated
- 626 – Satin chromium plated
- 626AM – Anti-microbial coating
- 643e – Aged bronze
- e = an equivalent finish to the BHMA standard.
- Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets A117.1 Accessibility Code.
Federal:
- Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2″ (64 mm) or less comply.
UL / cUL:
- All locks listed for A label single doors, 4′ x 8′.
- Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
