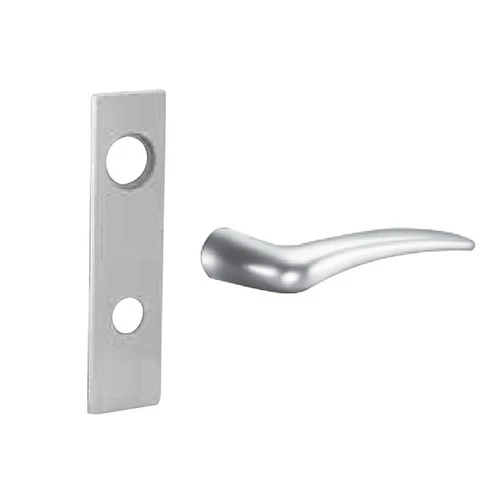

Sargent 8271-24V LW1A 26D LH 8200 Series 8271 Electrical (Fail Secure) Lockset, Satin Chrome

Power ON unlocks outside lever, 24VDC
8200 SeriesMortise Locks

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.

The patented SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability. These locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: strong, durable, flexible, innovative and secure.

Features:

• Patented design and construction

• Available in 60 different functions, including electromechanical, security and monitoring

• UL-cUL listed for three hour fire doors and windstorm applications

• 10-year warranty

Benefits: Strength & Reliability:

• Far exceeds independently verified testing. Verified for over 14 million cycles

Ease of Install:

• Pre-assembled components make installation fool-proof

Customizable:

• A wide variety of functions, lever designs and finishes make this lock ideal for all types of applications

Certification Compliance: ANSI/BHMA:

• Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. ANSI/ASTM F476-84 Grade 40 with concealed mortise cylinder.
• Note: LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA:

• Meets A117.1 Accessibility Code
• Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL-cUL:

• UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)

• All levers with returns comply; levers return to within 1/2″ (13mm) of door face

Windstorm Certifications: Florida Building Code:

• FL2998

UL Certification Directory:

• ZHEM.R21744 – Latching Hardware

Electromechanical Functions: 70 Electrical (Fail Safe) / 71 Electrical (Fail Secure)

• 70 function — Power ON, locks outside lever

• 71 function — Power ON, unlocks outside lever

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key outside retracts latchbolt

• Lever outside retracts latchbolt, except when locked

• Lever outside can only be locked electronically

• Lever inside always retracts latchbolt

• Auxiliary deadlatch

Electromechanical Functions: 72 Electrical (Fail Safe) / 73 Electrical (Fail Secure)

• 72 function — Power ON, locks both levers

• 73 function — Power ON, unlocks both levers
• CAUTION: Not recommended for use on any door used for Life Safety egress

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both Levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Specifications:

• For Doors 1-3/4″ (44mm) thick standard

• Backset 2-3/4″ (70mm) only

• Outside Front Plate Brass, bronze or stainless steel.
• 8″ (203mm) x 1-1/4″ (31mm), ANSI/BHMA Standard A156.115

• Front adjustable at any angle from flat to beveled 1/8″ (3mm) in 2″ (51mm)

• Hubs for Knobs/Levers
• – 8200: cold forged steel
• – R8200: investment cast steel

• Auxiliary Deadlatch is stainless steel and non-handed

• Specify hand on order; easily field reversible
• (if no hand is specified RH will be provided)

• Strike: Brass, bronze or stainless steel; ANSI Standard; curved lip, non-handed (strike box optional)

• Keys: Two, nickel silver
• (control key or emergency key must be ordered when required)

• Cylinder: Brass, size #41 (1-1/8″) standard
• (except for Freewheeling, size #46 (1-3/4″))

• Can be masterkeyed or grand masterkeyed.
• Construction keying available.
• LA standard keyway

• Stile: 4-1/2″ (114mm) minimum stile for 7800/8200/R8200,
• 4-3/4″ (121mm) minimum stile for electrical function locks

• Door Prep:
• ANSI/BHMA A156.115 or A156.115W modified per template

• Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks.
• Warranty limited to replacement of lockbody and/or components.

Maximum Strength & Durability:

• Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims

• Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard

• Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64″ (3mm) (.109″)

• 1/8″ (.125″) cold-rolled steel inside front holds lock securely in door

• Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks

• Latchbolt is stainless steel with 3/4″ (19mm) projection one-piece, anti-friction reversible latch

• Deadbolt is one-piece hardened stainless steel with 1″ (25mm) projection

• Optional 8200 stainless steel hubs for Institutional setting (specify 3- option)

• Patent pending and/or patent www.assaabloydss.com/patents

Maximum Flexibility:

• Fast and easy installation. Lock is easily re-handed without removing parts or opening the lock case

• Aesthetic design. Many escutcheon and lever styles available to match a wide range of styles

• Many standard architectural grade finishes, including Polished Nickel (US14) & Satin Nickel (US15) finishes

• 53 functions including 4 electrical functions. The most in the industry for a broad range of applications

• Versatile. Offered for door thicknesses ranging from 1-3/8″ (35mm) to 6″ (152mm)

• Available with vandalism deterrent trim and/or secure fastener options Torx® and spanner screws for high abuse conditions

• Available with push/pull trim, perfect for hospital applications

• Status indicator options provide peace of mind on the locked/unlocked status of a door

Innovation:

• First in the industry to offer a multi-functional lockbody that embodies 8 functions in 1 lockbody

• Easy operation. Only 30º of lever rotation required to retract latchbolt

• Lever springs contained inside of the lock case for easier installation

• SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed

• Broad offering of electro-mechanical configurations offer higher security for the most demanding access/egress control applications featuring ElectroLynx® quick connectors

Security:

• Multiple security trim options available: free-wheeling, security escutcheon and anti-vandal pull trim (patent pending)

• Security key systems available
• (Degree, Signature, Keso, Keso F1, & XC)
