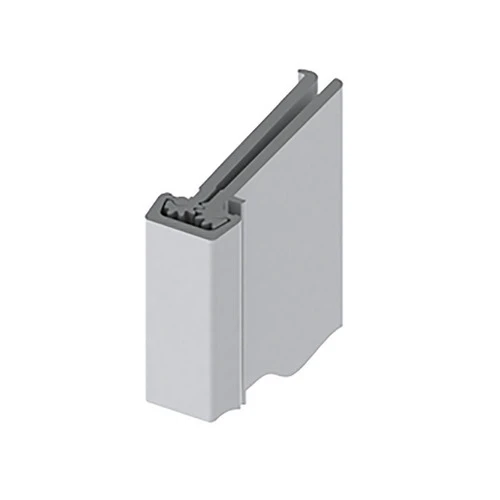

Hager 780-224LL 95 CLR ETW-12 RH Electrified Continuous Hinge Satin Aluminum Clear Anodized

Original price was: $326.00.Current price is: $99.99.

SKU: 780-224LL 95 CLR ETW-12 RH Category: Hinges and Pivots Tag: Hager

Experience the difference quality makes.
Shop with Confidence
We take quality seriously.
Safeguard Your Shopping Experience

Concealed Leaf Continuous Geared Hinge, Heavy Duty, Lead Lined, 95″, 12-Wire, ALUMINUM

All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

Height	95 In.
Package Qty	1
Wire Length	12 In.
Prep Location	56 In. Top to Center
Special Marks	Fire rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Screw	Half Drill Quick, Half Wood
Restrictions	Largewide
Power Transfer	12-28GA
Bearing Type	Continuous Gear
Grade	Grade 1
Fire Rated	3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Hinge Type	Continuous Hinge, Concealed Leaf
Color Code	628/US28
Color	Satin Aluminum Clear Anodized
Weight	Standard Duty
Application	ETW-12 Through Wire
Base Material	Aluminum
