Hager 161070 311H 5″ US26D (REV 1)
Original price was: $184.33.$98.99Current price is: $98.99.
- Experience the difference quality makes.
- Shop with Confidence
- We take quality seriously.
- Safeguard Your Shopping Experience
SPECS :
Bolt Diameter: 3/4″ (19 mm)
Bolt Throw: 1/2″ (13 mm)
Certifications: ANSI A156.2 closest equivalent (bored latch- series 4000- grade 2)
Escutcheons: 3-1/16″ x 5″ (78 mm x 127 mm)
Notes:
- 2-3/4″ (70 mm) backset standard, 5″ (127 mm) backset optional
- Non-handed
Optional Features: Engraving Handed: A (standard) – “PUSH” down; “PULL” down. B – “PUSH” up; “PULL” down. C – “PUSH” up, “PULL” up. D – “PUSH” down, “PULL” up.

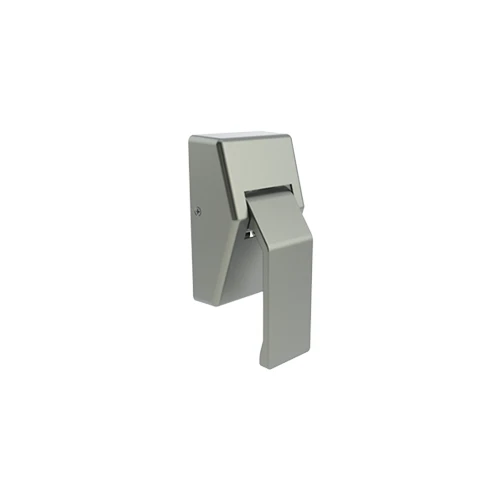

Product Description: Push/Pull Hospital Latch
Pushand Pull Levers: 1-15/16″ x 4-1/2″ (49 mm x 114 mm)
| Projection | 2-5/8" |
|---|---|
| Material | Zinc, Stainless Steel |
| Door Thickness | 1-3/4" (45 mm) |
| Strike Size | 1-1/8" x 2-3/4" (57 mm x 29 mm) T-strike and 1-1/4" x 4-7/8" (124 mm x 32 mm) ASA strike are both included |
