Sale!

CRL PHA6LPS Polished Stainless North American Patch Door Kit For Double Doors For Use With Fixed Transom – With Lock

Original price was: $374.00.Current price is: $95.99.

SKU: PHA6LPS Category: Uncategorized Tag: CR Laurence

Experience the difference quality makes.
Shop with Confidence
We take quality seriously.
Safeguard Your Shopping Experience

CRL PHA6 North American Door Kits come with all the hardware to complete a pair of free-swinging doors with fixed transom, (except glass and additional supports for the fixed transom). Pivot setback is 2-3/4″ (70 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.

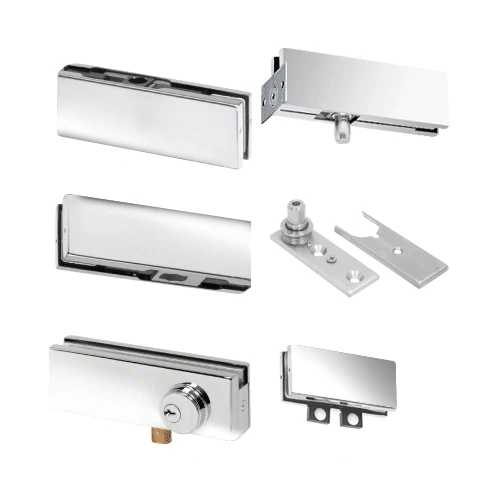

Kit Contains:

2 – PH34 Wall Mount Transom Patches

2 – PH20A Top Door Patches

2 – PH10C Bottom Door Patches

1 – PH70 Transom Door Stop

2 – 1NT403 Bottom Pivots

Gaskets for 3/8″ or 1/2″ (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with locks also come with two each Cat. No. AMR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Lock	With Lock
Finish	Polished Stainless
Pivot Backset (Inches)	2 3/4
Configuration	Pair With Transom
Glazing Thickness	3/8, 1/2
Door Type	F Style Glass Door
Finish/Color	Polished Stainless Steel
